Single Pin Mobile Phone 3 Distribution Boxes Motor Controller Battery Packs Cable DC Power Waterproof Connector
Part No.: FPL2*021601P
Description:
This metal shell connectors are widely used in electrical vehicle filed for high voltage/ high current transmission between devices such as vehicle chargers, battery packs, high-voltage distribution boxes, motor controller, motor, air conditioner, PTC, lithium battery, etc.
Features:
- Touch Proof
- Compact Robust Design ,Various Termination Options
- EMI Shielded
- Quick Lock and Press-to- Release Design
- Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
- Accept OEM & ODM for your customized requirement;
Application:
- Battery Packs
- Electrical Motorcycle
- Electrical Scooters
- Ebikes
Parameters:
| Electrical Performance |
| Rated Current | 50A max |
| Rated Voltage | 1000V DC |
| Insulation Resistance | 5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
| Test Voltage | 3000V AC |
| Mechanical Performance |
| Minimum Mating Cycles | 500 times |
| Wire Range | 2.5mm2~6mm2 |
| Environment Performance |
| Protection Grade | IP67 (mated) |
| Operation Temperature | -40 ℃ ~+85 ℃ |
| Salt Spray Resistance | 48H (Mating State) |
| Reference Standard |
| USCAR-2 |

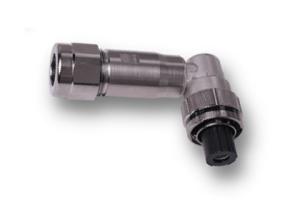

Product Pictures:
Drawings:
Socket (outside mounted)
Socket (inside mounted)
Plug (Straight)
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
